1、Machine Overview

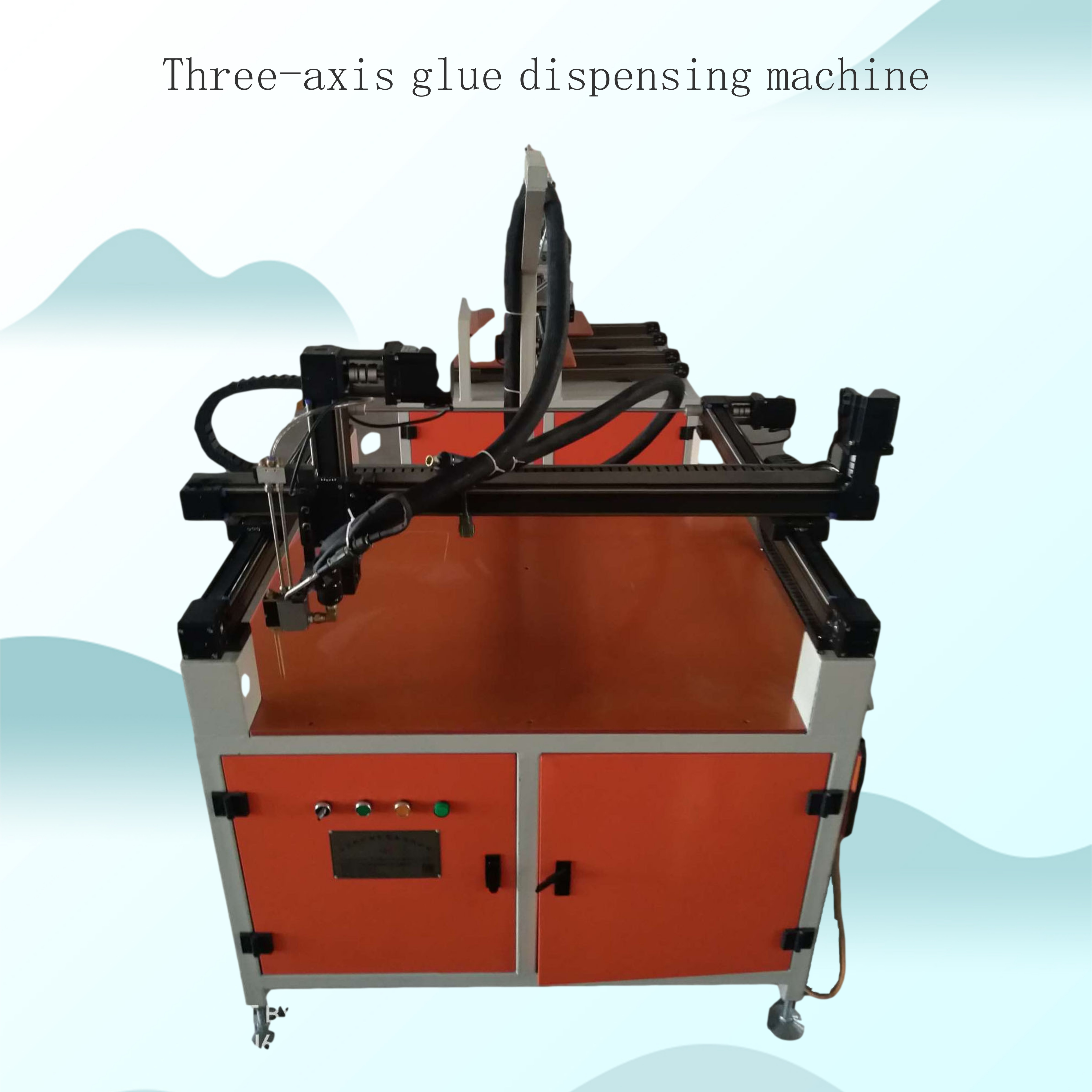

JSMRAB-600 AB three-axis glue dispenser is suitable for the processing of air filter bag frame models.
JSMRAB-600 AB three-axis glue dispensing machine is including 3 parts: automatic glue feeding device, glue dispensing device and pump body.
Pour the the glue A into A bucket, pour the glue B into the B bucket; then mix the AB glue into the dispensing device through the pump body. The AB glue injection machine is the first choice for the air filter outer frame glue processing.
The JSMRAB-600 AB three-axis dispenser uses electricity and compressed air as power sources.
2、Technical parameters of JSMRAB-600AB dispensing production line
Working speed: adjustable
Maximum passing width of filter material: 600mm
Maximum height of filter material: 360mm
Production efficiency: 15 pcs/min
Total machine power: 2kw
Total motor power: 2kw
Air pressure: 0.6MPa
Power supply voltage: 380V/50Hz
Host L×W×H (length×width×height) 6070mm×840mm×1500mm
AB glue machine L×W×H (length×width×height) 1000mm×900mm×830mm
